HIGH POWER LASERS FOR INDUSTRY
SPEED UP UV
PROCESSING WITH
Pulse duration 2 ns to 10 ns or Burst
ADD AGILITY TO
MICROMACHINING
PROCESSING WITH

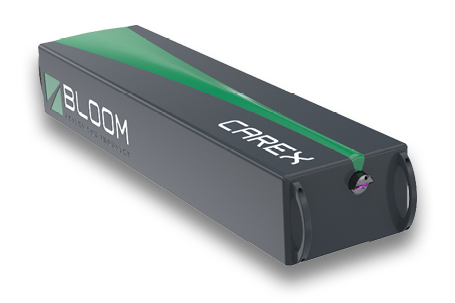

CAREX
343 nm
45 W
Up to 4 MHz
Up to 450 µJ
515 nm
80 W
Up to 4 MHz
Up to 800 µJ
Programmable pulses 2 ns to 20 ns or Burst
Wavelength | 343 nm | 515 nm |
Power | 60 W 400 kHz @ 7.5 ns 60 W 1 MHz @ 2 ns | 120 W 400 kHz @ 7.5 ns 120 W 1 MHz @ 2 ns |
Pulse Duration | 2 ns, 5 ns, 7.5 ns, 10 ns or Burst | |
Max Pulse Energy | Up to 300 µJ | Up to 600 µJ |
Beam Quality | M² < 1.2 |
Wavelength | 343 nm | 515 nm |
Power | 45 W up to 400 kHz |
80 W up to 400 kHz |
Pulse Duration | 2 ns – 20 ns fully variable Programmable pulse Burst mode | |
Max Pulse Energy | Up to 450 µJ | Up to 800 µJ |
Beam Quality | M² < 1.2 |
Wavelength | 343 nm | 515 nm |
Power | 50 W / 50 MHz | 80 W / 30 MHz |
Pulse Duration | 50 ps | 30 ps |
Beam Quality | M² < 1.2 |
Wavelength | 343 nm | 515 nm |
Power |
60 W / 400 kHz / 7.5 ns 60 W / 1 MHz / 2 ns |
120 W / 400 kHz / 7.5 ns 120 W / 1 MHz / 2 ns |
Pulse Duration |
2 ns, 5 ns, 7.5 ns, 10 ns or Burst |
|
Max Pulse Energy | Up to 300 µJ | Up to 600 µJ |
Beam Quality | M² < 1.2 |
Wavelength | 343 nm | 515 nm |
Power | 45 W up to 400 kHz | 80 W up to 400 kHz |
Pulse Duration |
2 ns - 20 ns fully variable Programmable pulse Burst mode |
|
Max Pulse Energy | Up to 300 µJ | Up to 600 µJ |
Beam Quality | M² < 1.2 |
Wavelength | 343 nm | 515 nm |
Power | 50 W / 50 MHz | 80 W / 30 MHz |
Pulse Duration | 50 ps | 30 ps |
Beam Quality | M² < 1.2 |
YUCCA 60-343 | YUCCA 120-515 | |
---|---|---|
Wavelength | 343 nm | 515 nm |
Power |
60 W / 400 kHz / 7.5 ns 60 W / 1 MHz / 2 ns |
120 W / 400 kHz / 7.5 ns 120 W / 1 MHz / 2 ns |
Pulse Duration |
2 ns, 5 ns, 7.5 ns, 10 ns or Burst |
|
Max Pulse Energy | Up to 300 µJ | Up to 600 µJ |
Beam Quality | M² < 1.2 |
CAREX 45-343 | CAREX 80-515 | |
---|---|---|
Wavelength | 343 nm | 515 nm |
Power | 45 W up to 400 kHz | 80 W up to 400 kHz |
Pulse Duration |
2 ns - 20 ns fully variable Programmable pulse Burst mode |
|
Max Pulse Energy | Up to 450 µJ | Up to 800 µJ |
Beam Quality | M² < 1.2 |
OYAT 50-343 | OYAT 80-515 | |
---|---|---|
Wavelength | 343 nm | 515 nm |
Power | 50 W / 50 MHz | 80 W / 30 MHz |
Pulse Duration | 50 ps | 30 ps |
Beam Quality | M² < 1.2 |
Advantages
-
High speed processing
- High frequency up to 1 MHz
- High power 45 W up to 600 kHz
- Up to 40 kW peak power
- The right alternative to Q-Switch lasers with high pulse repetition rate and short nanosecond pulses
- Nanosecond UV high-speed micro-processing raised to a next level of throughput
- Compatible with fastest scanner systems available on the market
-
Agile lasers
- Programmable pulses from 2 ns to 20 ns
- Burst mode
- Pulse shaping capability (temporal top-hat, burst, free temporal form)
- Constant pulse duration and beam parameters over the entire range of pulse repetition rate
- Minimized Heat Affected Zone with combination of short pulses and high peak power
- Pulse energy stability < 2% over the whole pulse repetition rate
-
Field proven
- Mature and field proven fiber technology
- Designed for 24/7 production environments
- HALT designed / HASS Certified
- Best manufacturing practices for long lifetime and high uptime
- Industry 4.0 ready
- Remote control and support
Why Bloom Lasers ?
BLOOM puts customer care and satisfaction in the core of its daily operations and strategic decisions. Since its creation, BLOOM has built an operational service team with local service installations for fast response time to our customers.
BLOOM designs, manufactures and delivers stable, reliable and long-term operations lasers for 24/7 environment productions. Its lasers are built on a fiber technology both mature and field proven. BLOOM has implemented high-end methodologies supporting design, quality and serviceability for 24/7 industrial operations.
BLOOM is installed in a brand new production facility including an ISO6 clean room, and is capable of high volume manufacturing and fast production ramp-up. With minimum assembly and alignment steps thanks to the fibered design, leads times are shortened.
Choosing BLOOM lasers for your microprocessing application is investing on the future with a scalable technology that will sustain faster throughput and cost reduction of your machines.
Our missions
-
Bring value to Industry
- Improve process throughput with more power and higher Pulse Repetition Rate
- Improve yield and maximize uptime of end-customer
- Bring agility to process with adjustable pulse duration
-
Design for Industry
- Built on reliable and mature technology
- Service strategy over the entire product lifetime
- Common products platform for optimized and efficient customer service
-
Innovate for Industry
- Innovation in UV conversion for industry
- Innovation in high power fibers
- Innovation in Industry 4.0 for lasers
